QwwHueSatPicker Class Reference

The QwwHueSatPicker class provides a widget allowing color picking in a form of a hue-saturation rectangle. More...

 #include <QwwHueSatPicker>

Inherits QFrame.

• List of all members, including inherited members

Properties

• 6 properties inherited from QFrame
• 58 properties inherited from QWidget
• 1 property inherited from QObject

Public Functions

• 14 public functions inherited from QFrame
• 217 public functions inherited from QWidget
• 13 public functions inherited from QPaintDevice
• 29 public functions inherited from QObject

Public Slots

• 19 public slots inherited from QWidget
• 1 public slot inherited from QObject

Signals

• 1 signal inherited from QWidget
• 1 signal inherited from QObject

Protected Functions

• 3 protected functions inherited from QFrame
• 37 protected functions inherited from QWidget
• 1 protected function inherited from QPaintDevice
• 7 protected functions inherited from QObject

Additional Inherited Members

• 1 public type inherited from QObject
• 4 static public members inherited from QWidget
• 4 static public members inherited from QObject
• 1 protected slot inherited from QWidget
• 1 protected type inherited from QPaintDevice
• 2 protected variables inherited from QObject

Detailed Description

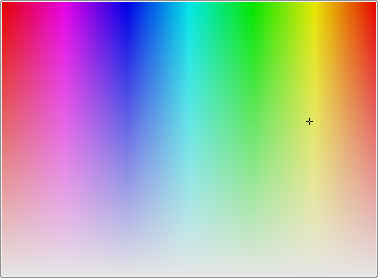

The QwwHueSatPicker class provides a widget allowing color picking in a form of a hue-saturation rectangle.

Property Documentation

color : QColor

This property holds this property holds the currently chosen color.

Access functions:

maximumHue : int

This property holds this property holds the maximum value of the hue component shown by the widget.

Access functions:

maximumSat : int

This property holds this property holds the maximum value of the saturation component shown by the widget.

Access functions:

minimumHue : int

This property holds this property holds the minimum value of the hue component shown by the widget.

Access functions:

minimumSat : int

This property holds this property holds the minimum value of the saturation component shown by the widget.

Access functions:

value : int

This property holds this property holds the value component of the table visible.

This property keeps the lightness component of the color table. The range of allowed values for this property is 0-255. The default value is 220.

Access functions:

Member Function Documentation

QwwHueSatPicker::QwwHueSatPicker ( QWidget * parent = 0 )

Constructs a hue sat picker with a given parent.

void QwwHueSatPicker::colorPicked ( QColor color )   [signal]

This signal is emitted when color is picked.

void QwwHueSatPicker::drawCrosshair ( QPainter * p, const QPoint & pt )   [virtual protected]

This method draws the crosshair pointing the currently chosen color at point pt on painter p. p painter to draw on pt point to draw the cross in

void QwwHueSatPicker::hueRangeChanged ( int min, int max )   [signal]

This signal is emitted when the Hue range changes to (min, max)

void QwwHueSatPicker::maximumHueChanged ( int )   [signal]

void QwwHueSatPicker::maximumSatChanged ( int )   [signal]

void QwwHueSatPicker::minimumHueChanged ( int )   [signal]

void QwwHueSatPicker::minimumSatChanged ( int )   [signal]

void QwwHueSatPicker::satRangeChanged ( int, int )   [signal]

void QwwHueSatPicker::setHueRange ( int mi, int ma )

mi ma

void QwwHueSatPicker::setSatRange ( int mi, int ma )

mi ma

void QwwHueSatPicker::valueChanged ( int )   [signal]
